Adapter R-1234yf high pressure x F 1/4" SAE set of 5 pieces
Adapter for the high pressure (HP) service port of R-1234yf air conditioning systems, with female 1/4" SAE connection for the equipment side. Allows standard 1/4" SAE service hoses to be connected to an R-1234yf high pressure port. Supplied as a set of 5 pieces.
Note: always check the refrigerant type (R-1234yf vs R-134a) and the pressure side (HP/LP) of the system before ordering. R-1234yf and R-134a ports are not interchangeable — an incorrect adapter cannot be connected.

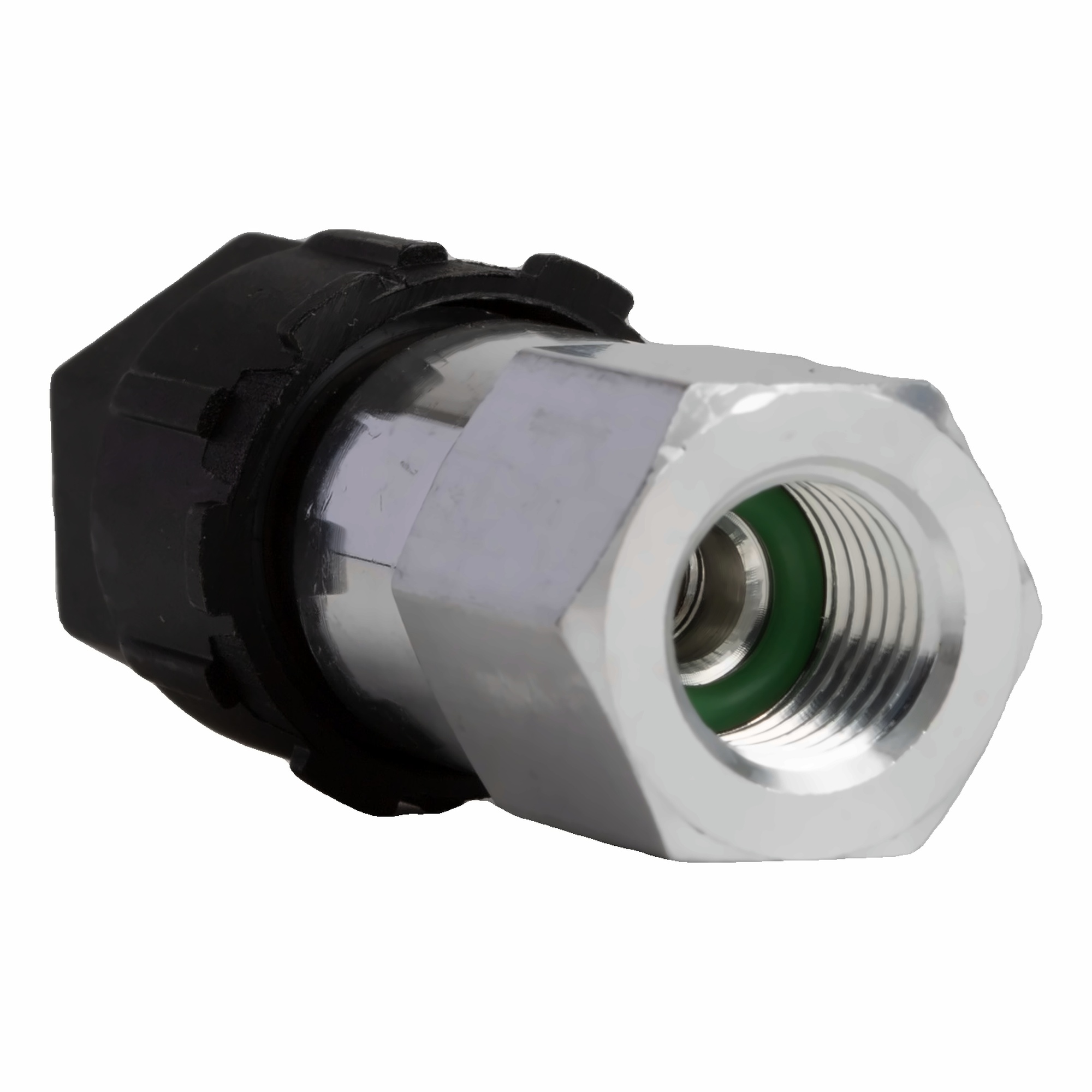

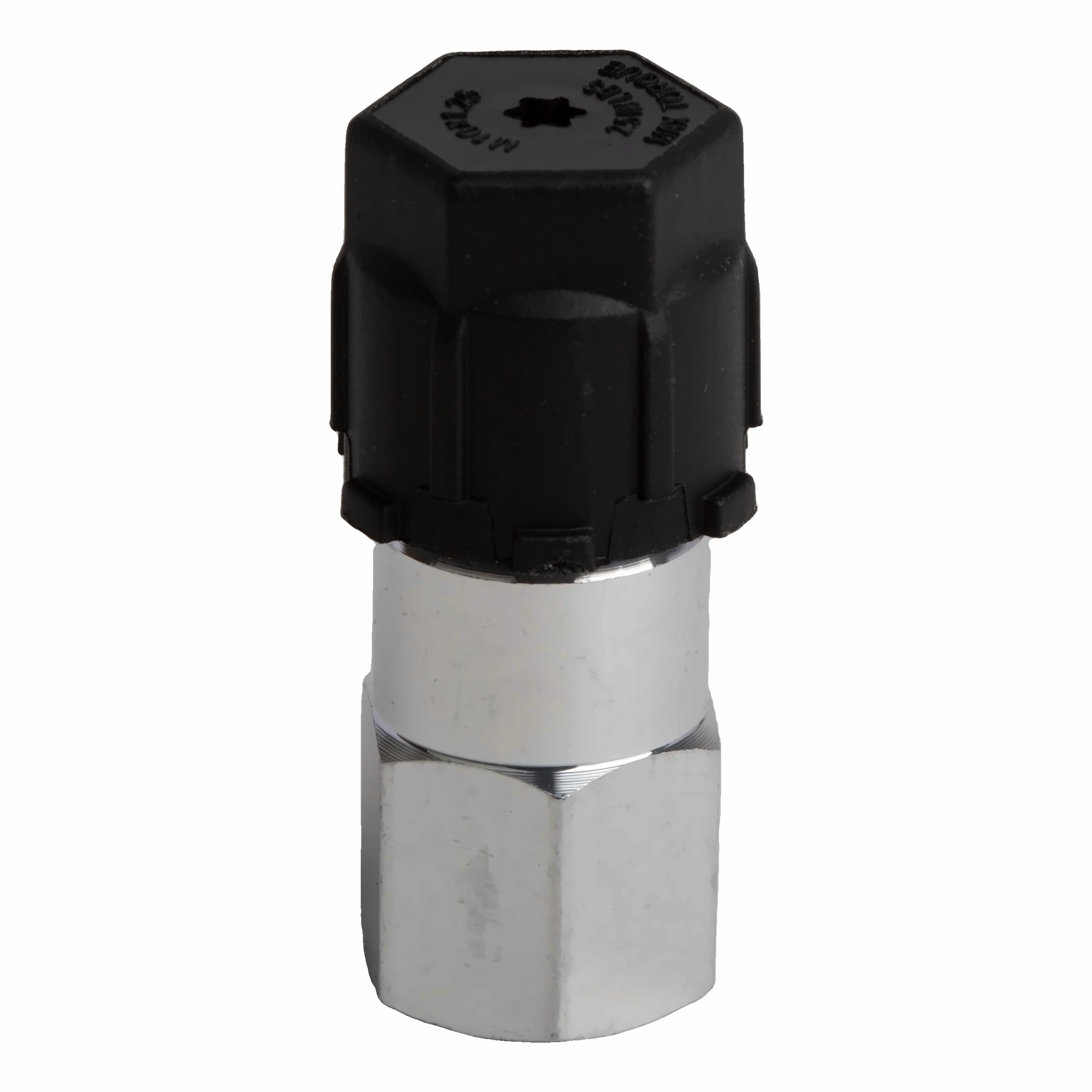

Adapter for the high pressure service port (HP) of air conditioning systems operating with R-1234yf refrigerant. The black plastic cap on the upper side connects to the R-1234yf high pressure service port (M14x1.5), the underside is fitted with a female 1/4" SAE connection for standard service hoses.
This adapter allows an AC charging station or manifold with classic 1/4" SAE service hoses to be used on newer vehicles equipped with R-1234yf refrigerant. The chrome-plated brass construction provides corrosion resistance and a long service life.
Supplied as a set of 5 pieces, convenient as workshop stock for servicing modern vehicles.
Specifications:
- Type: refrigerant service port adapter
- Refrigerant: R-1234yf
- Pressure side: high pressure (HP)
- Upper side: R-1234yf HP quick connect (M14x1.5)
- Underside: F 1/4" SAE (7/16-20 UNF) female
- Material: chrome-plated brass, plastic cap
- Packaging: set of 5 pieces
- Application: connecting 1/4" SAE service equipment to R-1234yf systems
No compatibility information available
