Filter drier AC filling station Bosch 213 mm
Replacement filter drier for Bosch AC filling stations. Length 213 mm, diameter Ø 76 mm with 1-3/8"-12UNF-2A threaded connection. Compatible with CFC, HCFC, HFC and HFO 1234yf refrigerants.
Please note: always check the dimensions and connection of the filter in your filling station before ordering. This filter has an asymmetric design with a 1-3/8"-12UNF-2A threaded connection on one side. Although compatible with Bosch stations, models and versions may vary.
Filter drier for replacing the filter element in Bosch AC filling stations. The filter drier dries and filters the refrigerant during recovery and recharging, keeping moisture, acids and particles out of the system to ensure the proper functioning of the filling station.
This filter has an asymmetric design with a 1-3/8"-12UNF-2A threaded connection on one side, as standard on Bosch stations. The desiccant consists of 80% Molecular Sieve and 20% Activated Alumina, effectively binding both moisture and acids.
Suitable for use with CFC, HCFC, HFC and HFO 1234yf refrigerants. Not suitable for ammonia (R717). The filter features an elevated design pressure of 60 bar.
Regular replacement of the filter drier is essential for accurate measurements, good vacuum performance and a long service life of the filling station.

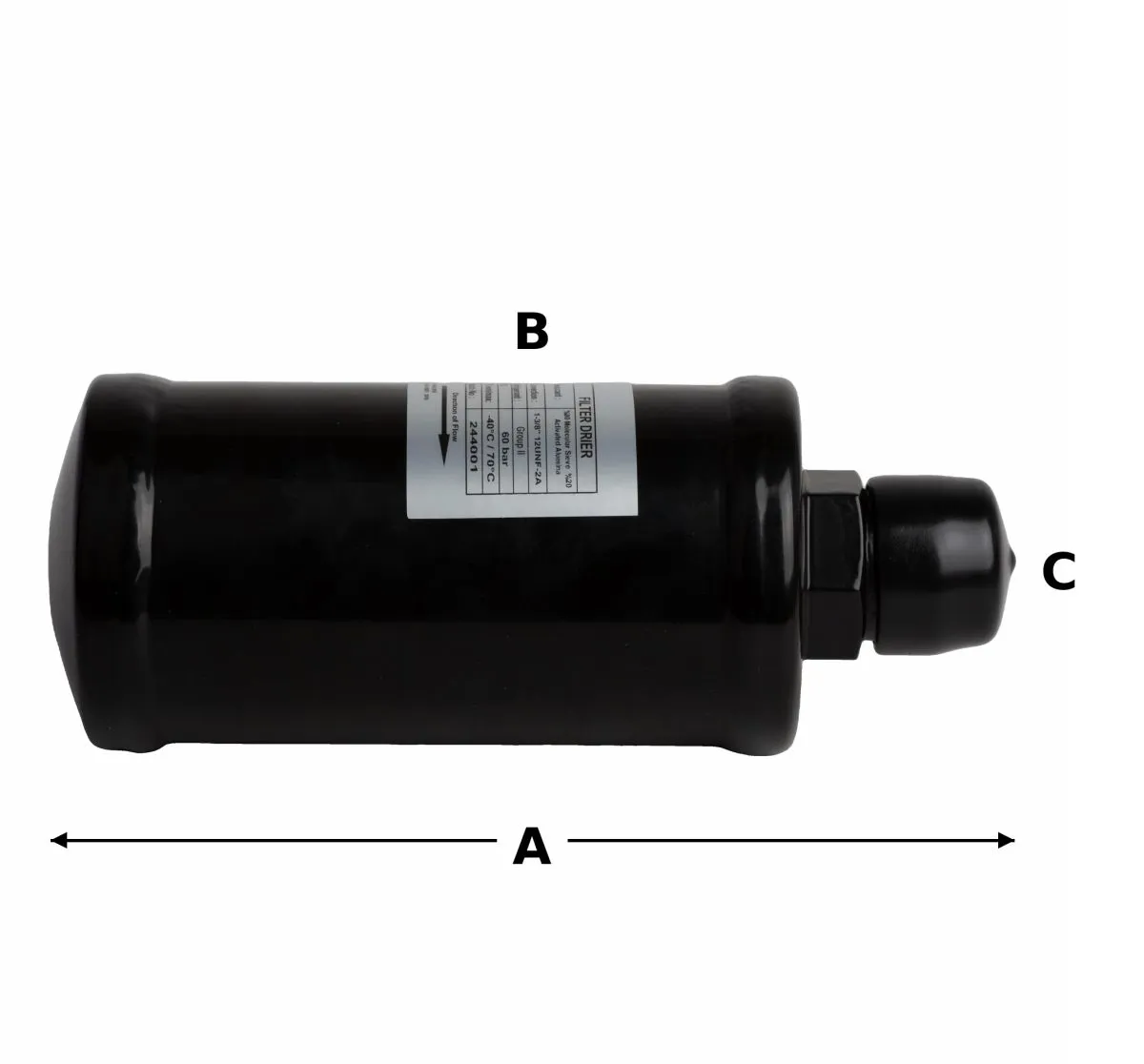

Specifications:
- Compatible with: Bosch AC filling stations
- A — Length: 213 mm
- B — Diameter: Ø 76 mm
- C — Connection: 1-3/8"-12UNF-2A threaded
- Desiccant: 80% Molecular Sieve, 20% Activated Alumina
- Design pressure: 60 bar
- Temperature range: -40 °C to +70 °C
- Suitable for refrigerants: CFC, HCFC, HFC, HFO 1234yf
- Not suitable for: ammonia (R717)
- Compliant with: PED 2014/68/EU
