Hand-operated oil and UV injector R1234yf
Hand-operated injector for introducing PAG/POE oil or UV leak detection dye, with charging hose, adjustable R1234yf quick coupler and separate M1/4" SAE adapter.
Please note: this injector is fitted with an R1234yf quick coupler. For R134a, a separate version is required. Before ordering, check which refrigerant your system uses.
Hand-operated injector for introducing PAG/POE oil or UV leak detection dye into an R1234yf air conditioning system. Fill the injector, connect it via the quick coupler to the low-pressure side of the system and turn the injector by hand to push the fluid in under pressure.

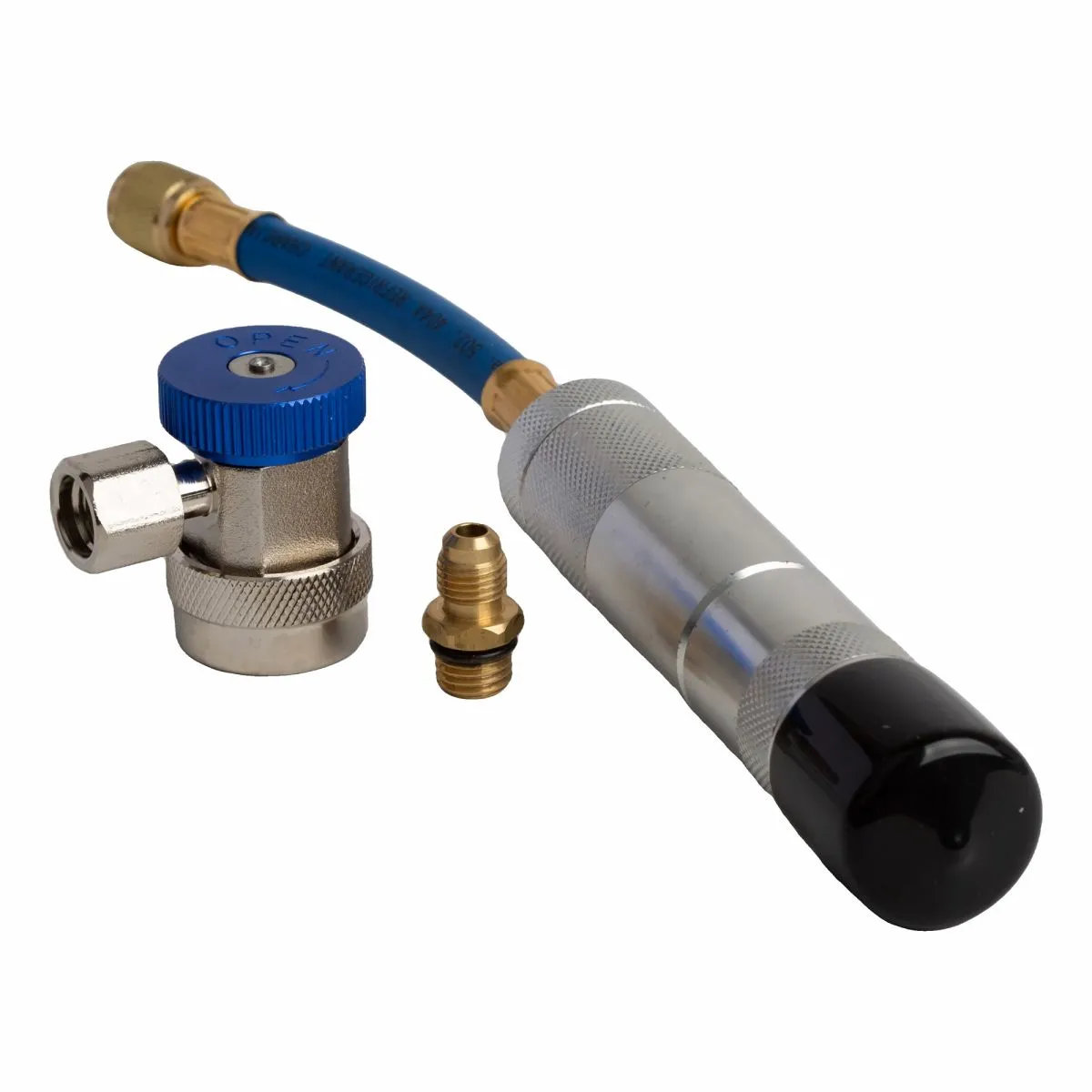

The injector features an aluminium body with knurled grips for secure handling and a rotary mechanism that delivers the oil or dye in controlled doses. The included charging hose connects to the R1234yf quick coupler via a blue control knob, which opens and closes the flow. The included brass adapter with O-ring converts the connection to M1/4" SAE.
With this injector you can accurately introduce oil or UV dye without disassembling the system. When using UV dye, you can subsequently detect any leaks using a UV lamp. Always work on the low-pressure side and follow the guidelines of the oil, dye and system manufacturer.
Specifications:
- Type: hand-operated oil and dye injector
- Connection: R1234yf quick coupler with control knob
- Compatible with: R1234yf air conditioning systems
- Suitable for introducing: PAG/POE oil, UV leak detection dye
- Included: charging hose, separate adapter M1/4" SAE x R1234yf with O-ring
- Body material: aluminium
- Fitting material: brass and chrome-plated
