Hand-operated Oil and UV Injector R134a

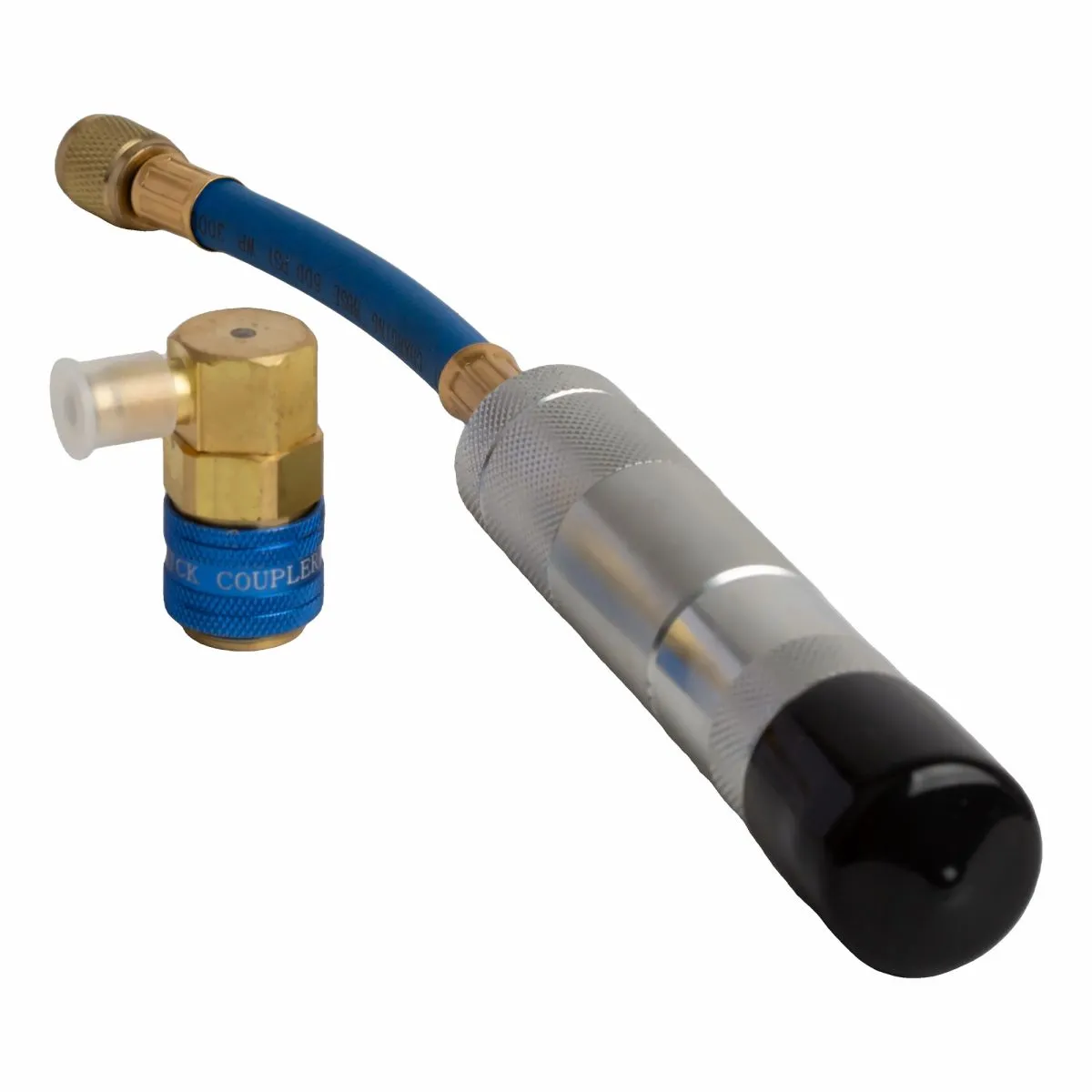

Hand-operated injector for introducing PAG/POE oil or UV leak detection dye into an air conditioning system. You fill the injector, connect it via the quick connector to the low-pressure side of the system, and turn the injector by hand to push the fluid in under pressure.

The injector features an aluminium body with knurled grips for a secure hold and a rotation mechanism that introduces the oil or dye in a controlled, metered flow. The included charging hose has a 1/4" SAE brass coupling and connects to the blue low-pressure quick connector, which clicks onto the low-pressure service port of an R134a system.

This injector allows you to accurately introduce oil or UV dye without disassembling the system. When using UV dye, you can subsequently detect any leaks using a UV lamp. Always work on the low-pressure side and follow the guidelines of the oil, dye, and system manufacturer.

Specifications:

• Type: hand-operated oil and dye injector
• Connection: blue low-pressure (LP) quick connector
• Compatible with: R134a air conditioning systems
• Suitable for introducing: PAG/POE oil, UV leak detection dye
• Hose: charging hose with 1/4" SAE brass coupling
• Body material: aluminium
• Fitting material: brass
