Quick connector low pressure R-134a with 1/4" SAE adapter
Manual low-pressure quick connector for R-134a air conditioning systems. Connects the service hose to the low-pressure port of the vehicle and is supplied with a brass adapter to M1/4" SAE for use with a standard 1/4" hose set.
Please note: before ordering, check whether this connector is compatible with your station, manifold set and the low-pressure port of the vehicle. Always use the connector that matches the refrigerant of the system.

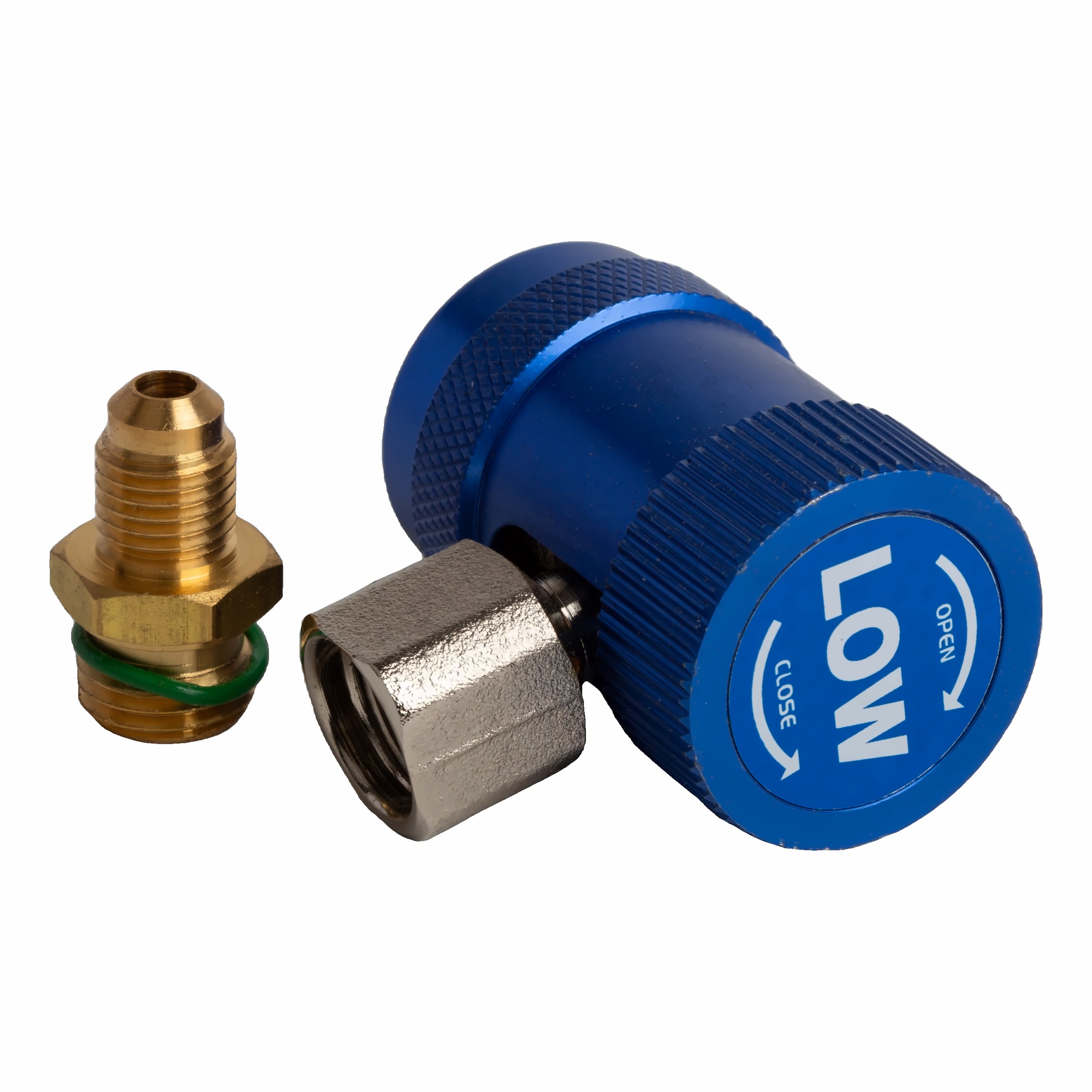

Low-pressure quick connector for charging and evacuating air conditioning systems operating on R-134a. Press the connector onto the low-pressure service port of the vehicle and operate it using the knurled aluminium knob with open/close indication. The blue "LOW" knob indicates the low-pressure side, preventing confusion between the high- and low-pressure connections.

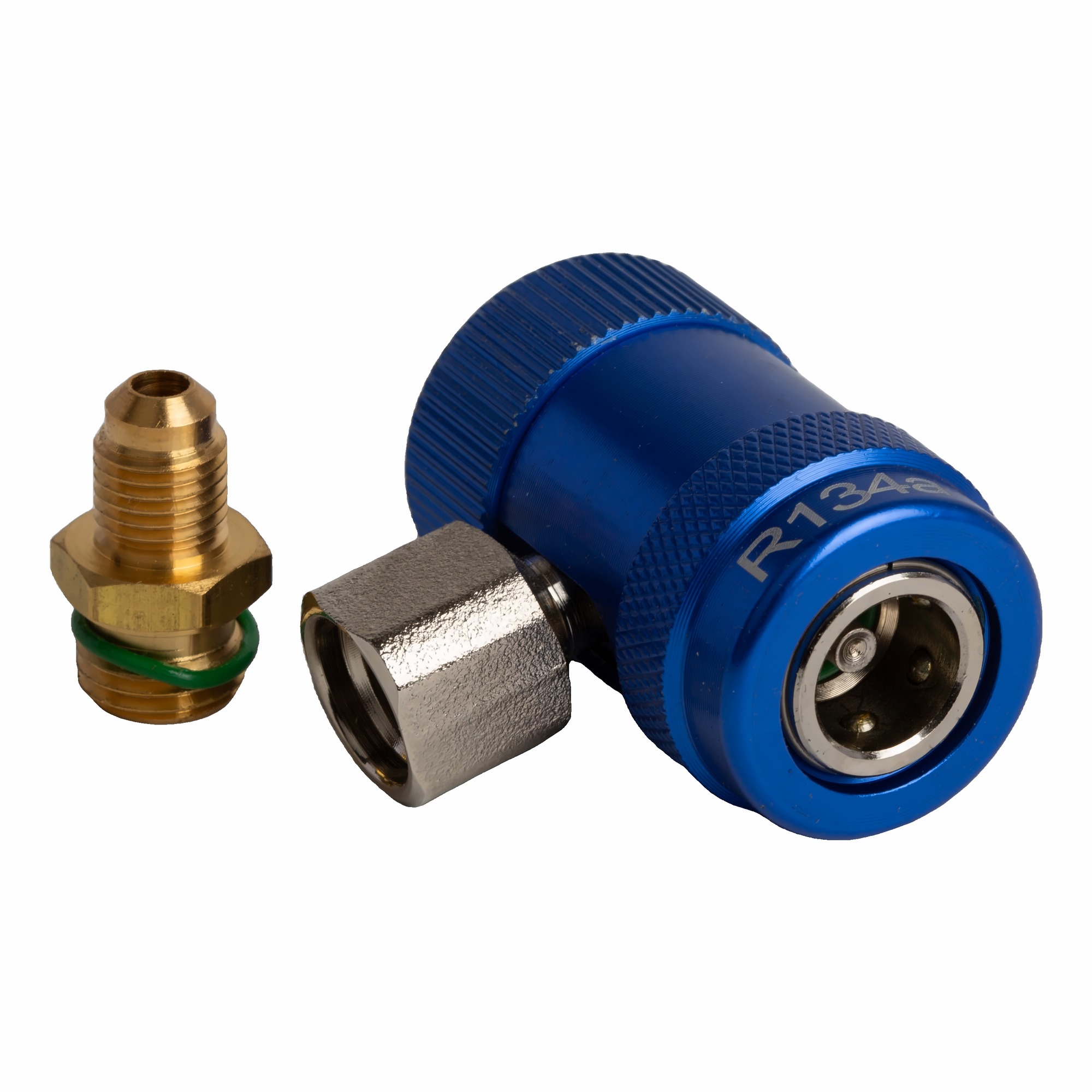

The connector features an F14x1.5 fitting and is supplied with a brass adapter M14x1.5 × M1/4" SAE (7/16"-20UNF) with a green O-ring. This allows the connector to be connected to a standard 1/4" SAE hose set. The body is made of anodised aluminium.
R-134a and R-1234yf systems use different connectors that are physically incompatible with each other. Therefore, use this connector exclusively for R-134a; a separate low-pressure connector is available for R-1234yf.
Specifications:
- Type: manual quick connector, low pressure
- Refrigerant: R-134a
- Pressure side: low (LP)
- Connector fitting: F14x1.5
- Included adapter: M14x1.5 × M1/4" SAE (7/16"-20UNF)
- Adapter O-ring: green
- Body: anodised aluminium, blue
- Operation: open/close knob
- Application: air conditioning charging and evacuation stations and manifold sets for R-134a
No compatibility information available
