Service coupling low pressure with valve 1/4" SAE R134a
Manual service coupling for the low-pressure side (LP) of R134a air conditioning systems, with integrated valve and 1/4" SAE connection.
Note: always check the connection sizes of your service equipment before ordering. This coupling is for the low-pressure side (LP); high-pressure and low-pressure couplings are not interchangeable.
Manual service coupling for connecting the low-pressure side of an R134a air conditioning system to a service hose or charging station. The coupling clicks onto the low-pressure service port of the system; the valve opens or closes the flow.

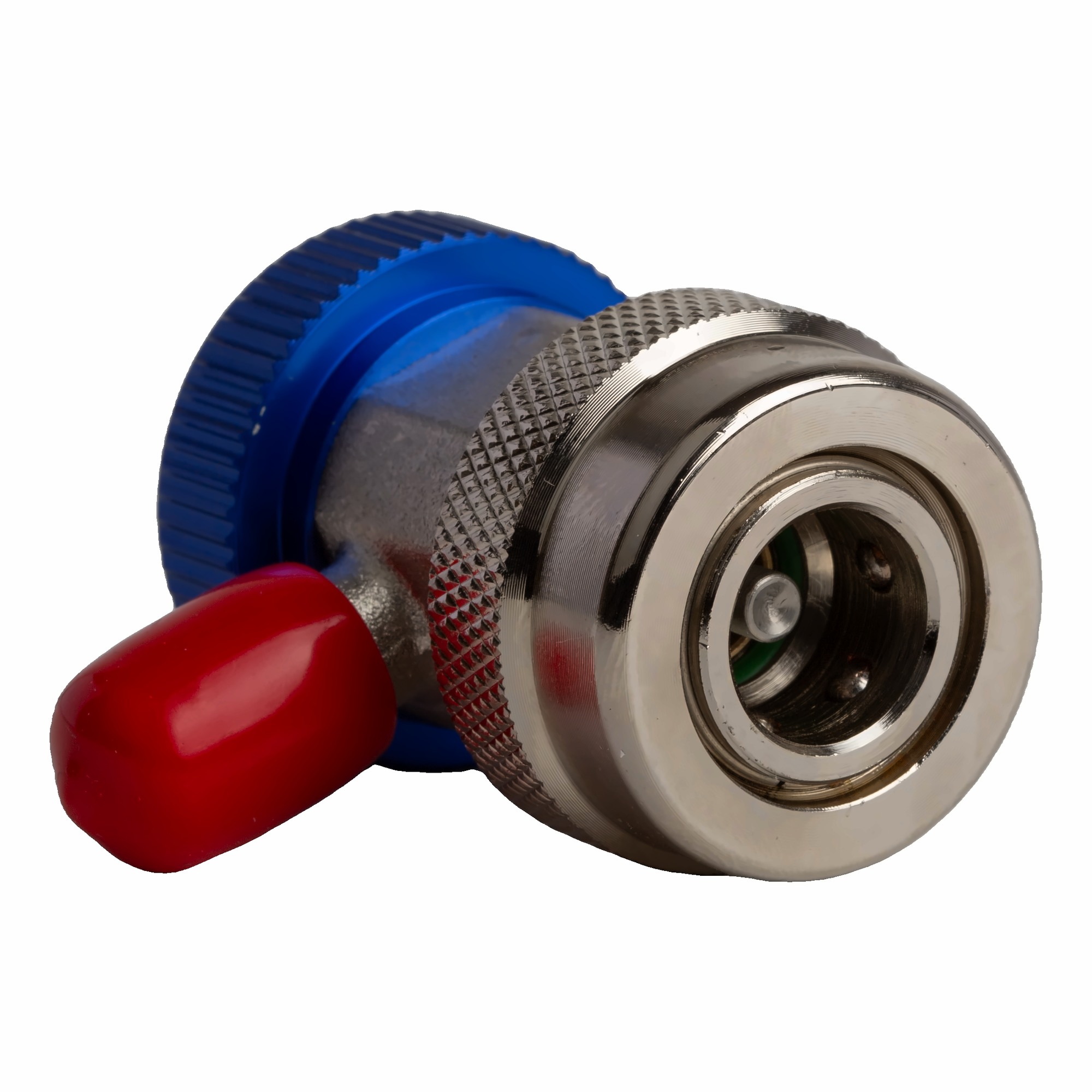

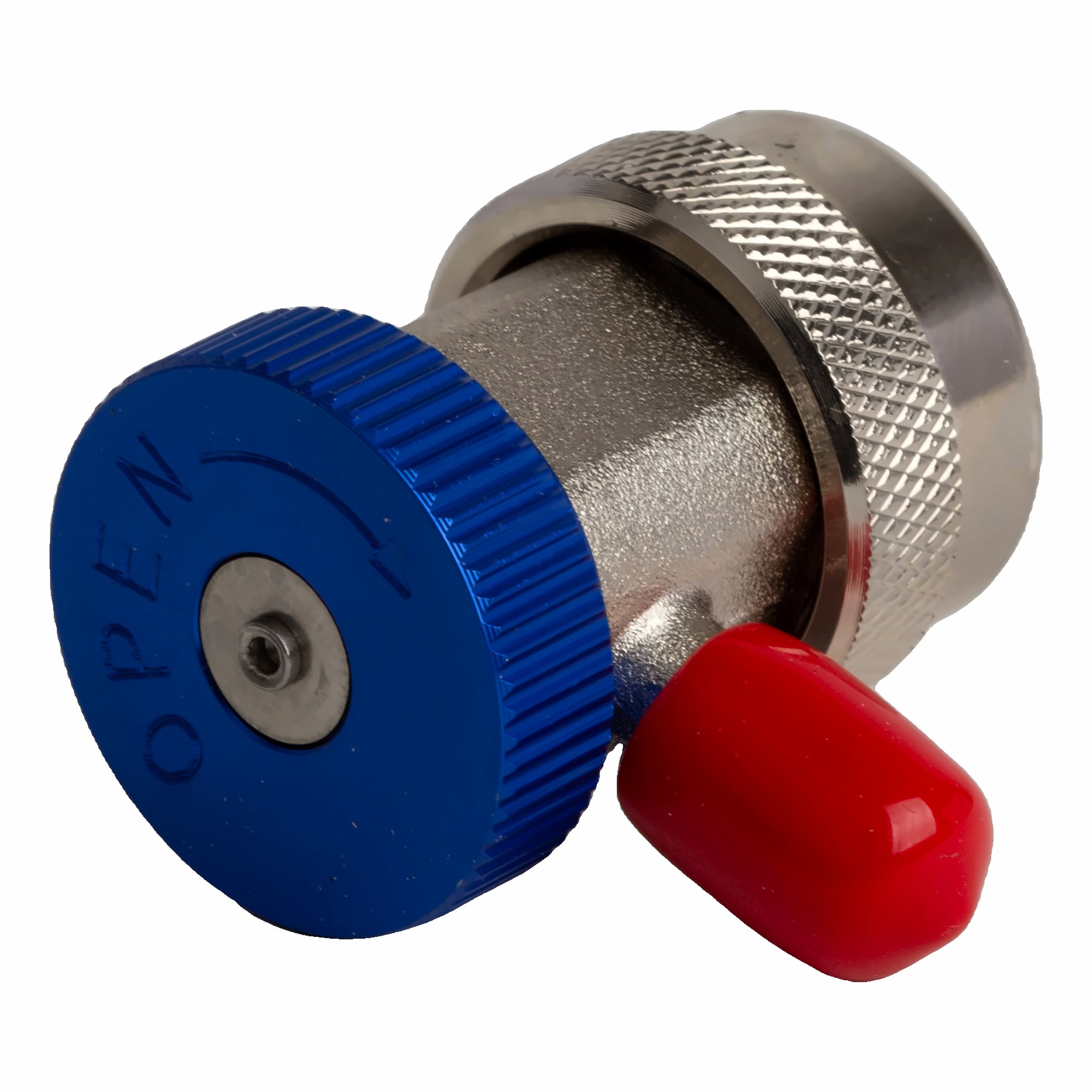

The coupling features a chrome-plated body with a knurled connecting collar for securing it to the service port. The blue control knob marked "OPEN" operates the integrated valve, allowing you to connect and disconnect the coupling without losing refrigerant. The blue colour indicates the low-pressure side. The hose side features a 1/4" SAE connection.
The integrated valve gives you control over the flow during connection and disconnection. Use this coupling exclusively on the low-pressure side of the system.
Specifications:
- Type: manual service coupling with valve
- Side: low pressure (LP)
- Compatible with: R134a air conditioning systems
- Hose connection: 1/4" SAE
- Operation: blue control knob (open/closed)
- Material: chrome-plated
