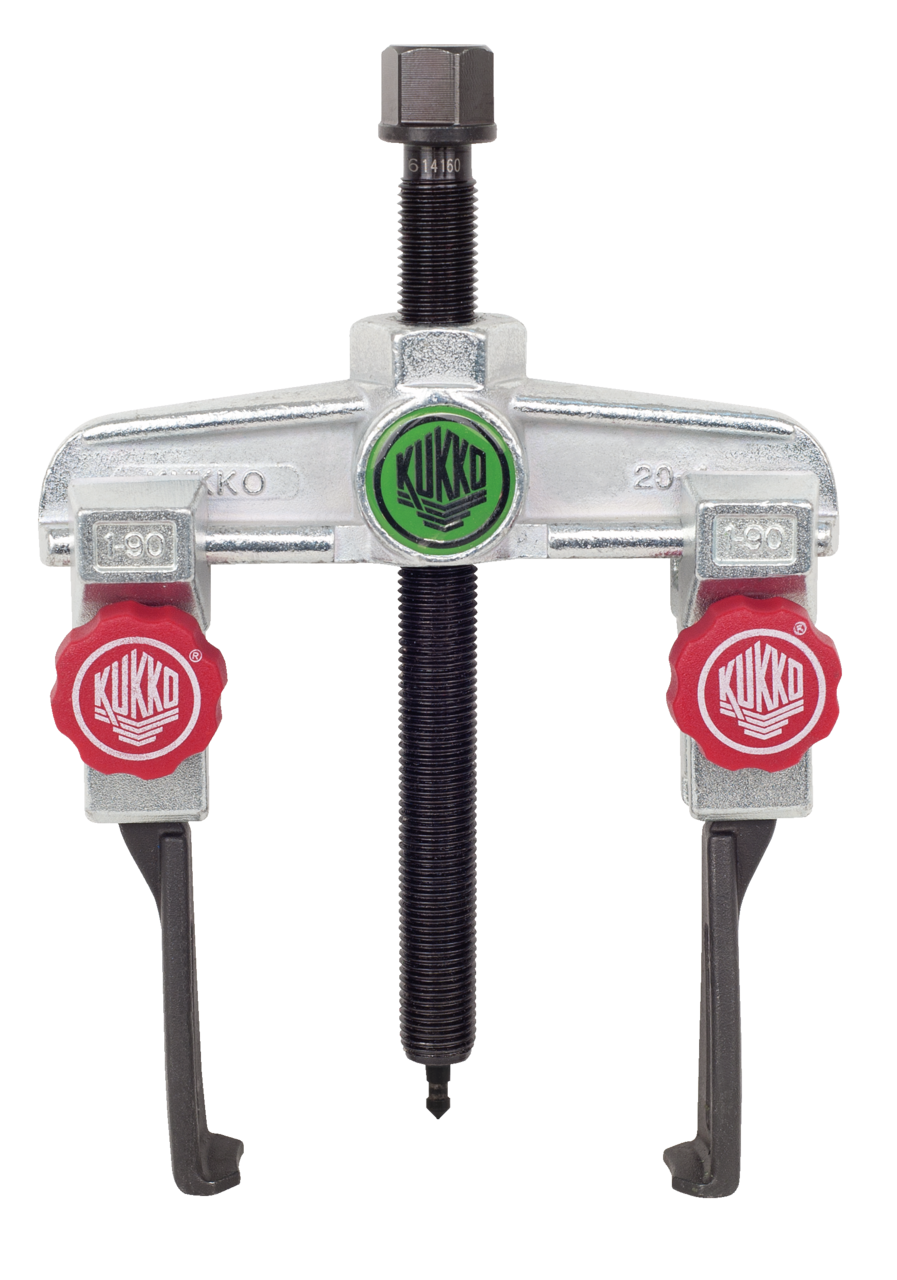

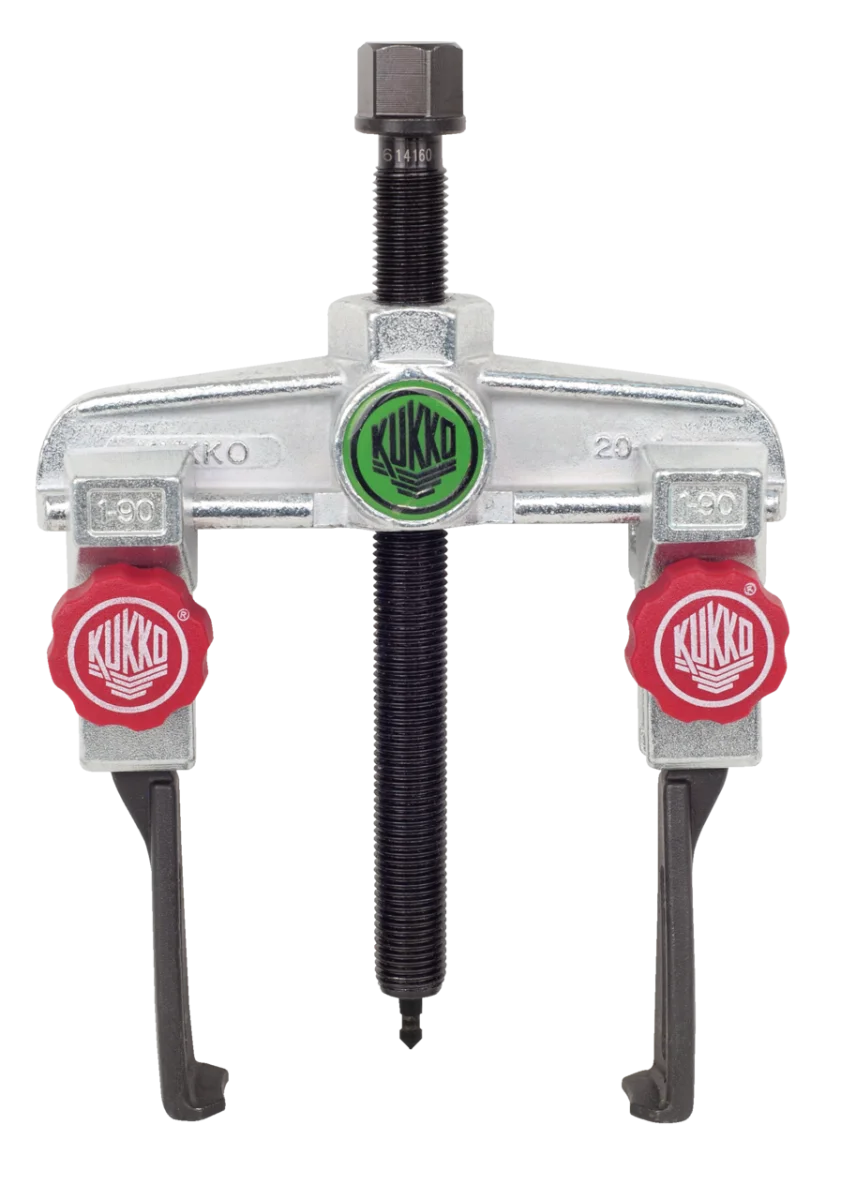

KUKKO 20-1+S-T Universal Puller, Narrow, 2-Arm, 90 x 100 mm

The same construction as the standard 20+, but with extremely narrow jaws and a trapezoidal contact face on the claw. That makes the difference where a standard jaw simply will not fit: behind a gear sitting flush against a bearing, or inside a gearbox where everything is packed together.

The jaws adjust quickly and stay parallel as they slide along the cross-arm. Use it for drawing off gears, bearings, pinions and synchroniser bodies in finer mechanics — anywhere the part is reachable but the room to grip it is minimal.

Cross-arms, jaws and spindles are available separately, and reversing the jaws lets the puller grip inwards as well.

Specifications

• Clamping range: tot 90 mm
• Clamping depth: 100 mm
• Number of arms: 2
• Design: extra smalle trekhaken
• Dimensions (w × h × d): 136 × 183 × 45 mm
• Material: tool steel
• Weight: 1.215 kg
• Series: 20+S-T
• Parts group: 20-S+T
• Manufacturer: KUKKO, Remscheid (Germany)
