Quick couplings
A quick coupling always comes in two halves. The plug goes on your tool or hose, the socket on the line. Push the plug in until you hear the click and the balls catch the groove.The profile decides whether they fit each other. Euro is the most common one in the Netherlands and Germany; Orion turns up on older installations and in France. If you are not sure, look at a multi socket: it takes both.
28 products4 subcategories
28 products

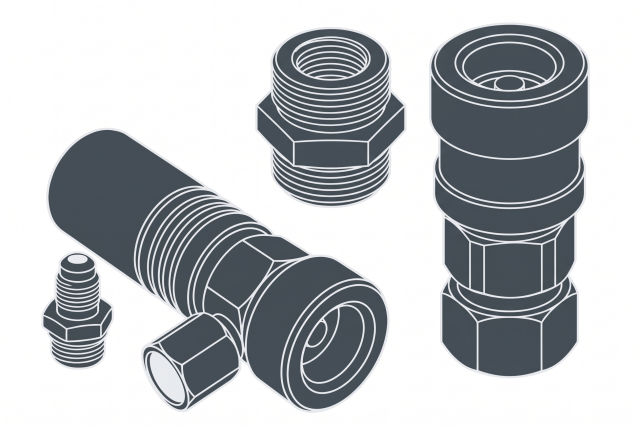

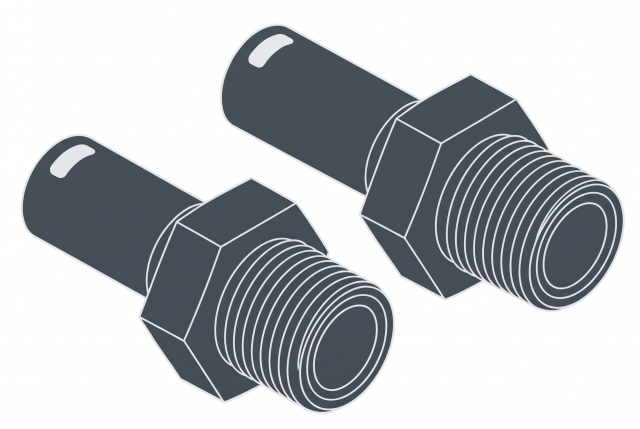

Quick coupling plugs
Quick coupling plug, Euro profile female thread, Aignep
from €3.30
3 variants
1-3
Quick coupling plugs
Quick coupling plug, Euro profile BSPP male thread, Aignep
from €3.19
3 variants
1-3
Quick coupling plugs
Quick coupling plug, Euro profile, push-on, Aignep
from €3.41
3 variants
1-3
Quick coupling plugs
Quick coupling plug, Euro profile, push-on with bend protector, Aignep
from €5.05
3 variants
1-3
Quick coupling plugs
Quick coupling plug, Euro profile, hose tail, Aignep
from €2.36
4 variants
1-3
Quick coupling plugs
Quick coupling plug, Orion profile female thread, Aignep
from €4.72
3 variants
1-3
Quick coupling plugs
Quick coupling plug, Orion profile BSPP male thread, Aignep
from €4.61
3 variants
1-3
Quick coupling plugs
Quick coupling plug, Orion profile, hose tail, Aignep
from €3.30
4 variants
1-3

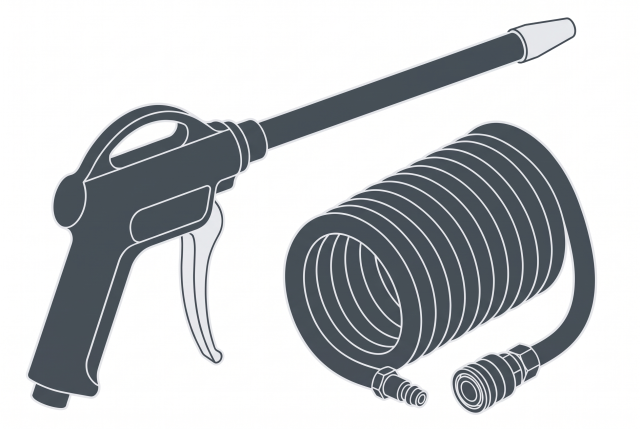

Quick coupling accessories
Bend protector for quick couplings
€1.87
1-3
Coupling sockets
Multi-Socket quick coupling female thread, Aignep
from €13.87
3 variants
1-3
Coupling sockets
Multi-Socket quick coupling BSPP male thread, Aignep
from €13.03
3 variants
1-3
Coupling sockets
Multi-Socket quick coupling, push-on, Aignep
from €14.07
4 variants
1-3
Coupling sockets
Multi-Socket quick coupling, push-on with bend protector, Aignep
from €15.90
4 variants
1-3
Coupling sockets
Multi-Socket quick coupling, hose tail, Aignep
from €13.87
4 variants
1-3
Coupling sockets
Multi-Socket quick coupling for rubber hose, Aignep
from €21.45
3 variants
1-3
Coupling sockets
Quick coupling socket, Euro profile female thread, Aignep
from €14.94
3 variants
1-3
Coupling sockets
Quick coupling socket, Euro profile BSPP male thread, Aignep
from €13.95
3 variants
1-3
Coupling sockets
Quick coupling socket, Euro profile, push-on, Aignep
from €15.16
3 variants
1-3
Coupling sockets
Quick coupling socket, Euro profile, push-on with bend protector, Aignep
from €17.08
3 variants
1-3
Coupling sockets
Quick coupling socket, Euro profile, hose tail, Aignep
from €14.94
4 variants
1-3

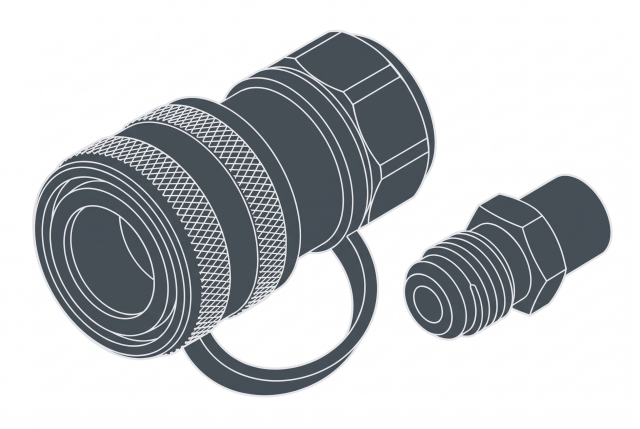

Safety couplings
Safety quick coupling, Euro profile female thread, Aignep
from €35.06
3 variants
1-3
Safety couplings
Safety quick coupling, Euro profile BSPP male thread, Aignep
from €34.30
3 variants
1-3
Safety couplings
Safety quick coupling, Euro profile, push-on, Aignep
from €35.43
6 variants
1-3
Safety couplings
Safety quick coupling, Euro profile, hose tail, Aignep
from €35.06
4 variants
1-3Frequently asked questions about Quick couplings
Answers to the most common questions from our customers
Look at the plugs you already own. If one fits your existing socket, that is your profile. Euro is the most common in the Netherlands. If you are unsure, or you run two kinds around the workshop, take a multi socket; it accepts Euro and Orion alike.
An ordinary socket releases the plug the moment you pull the ring back, and the trapped pressure whips the hose away. A safety coupling vents the pressure first and only then lets go. On ten metres of hose at 8 bar that is the difference between a jolt and a smack on the hand.
Thread goes on a fixed point, a tap or a tool. Push-on is for plastic tube and grips by itself. A hose tail goes into rubber hose and always needs a clamp; without one it will blow off.
Usually the O-ring in the socket. It wears from plugging in and out and from dirt on the plug. Blow the plug clean before you insert it and the ring lasts years. If the plug itself is scored or ridged, replace that instead.
On a push-on plug yes, you press it onto the tube. On a hose tail no: that needs a worm drive clamp around it, tightened with a screwdriver or socket. Firm, but not so far that the band deforms.
